Kinetic study of photocatalytic degradation of Ifos famide in a microchannel and simulation


Corresponding Author

Dr. Serge Corbel,

Telephone: +33 3 72 74 38 73; E-mail: serge.corbel@univ-lorraine.fr

Affiliation

Dr. Serge Corbel,  Dr. Florian Donat, Prof. Raphaël Schneider

Université de Lorraine, Laboratoire Réactions et Génie des Procédés (LRGP), UMR 7274, CNRS, 1 rue Grandville, BP 20451, 54001

Nancy Cedex, France

Citation

Serge Corbel , Kinetic study of photocatalytic degradation of Ifos famide in a microchannel and simulation(2019)SDRP Journal of Nanotechnology & Material Science 2(1)

Abstract

Among the possible solutions for the intensification of photocatalytic reactions, the use of microreactors is emerging. Such an approach was applied to the photodegradation of Ifosfamide in a flow microreactor with an immobilized catalyst composed of ZnO sensitized with CuInZnxS2+x quantum dots. The conversion yield at a low flow rate was investigated. A computational flow simulation allows to determine an apparent constant rate and the diffusion coefficient towards the photocatalyst surface. Photocatalytic degradation of Ifosfamide can be fitted by the Langmuir-Hinshelwood model. The Sherwood number and the average value of Damköhler show that the photocatalytic reaction under our experimental conditions is limited by the mass transfer.

Keywords: Photocatalysis, Microreactor, Kinetics, Zinc Oxyde, Quantum Dots, Diffusion coefficient.

Introduction

Advanced oxidation processes and especially photocatalysis are of high interest for the decontamination of water containing pollutants as hospital effluents [1,2]. Heterogeneous photocatalysts employed in a tubular reactor enable the control over reactivity and selectivity [3]. Traditionally, photochemical reactors are operated in batch mode. This configuration leads to a non-uniform distribution of UV light and a mass transfer limitation due to a slow diffusion.

Among the possible solutions for the intensification of photocatalytic reactions, the use of microreactors is emerging [4,5]. Microreactors with channel dimensions of a few hundred microns exhibit larger surface to volume ratio compared to classic reactors [6] and thus enable optimum utilization of incident radiation [7]. The observed reaction rate is at least one order of magnitude higher than that observed in conventional reactors [8].

Zinc oxide (ZnO) has been widely investigated over the last ten years as photocatalyst and has been demonstrated to be of high potential [9]. However, ZnO suffers from two main drawbacks. First, due to its wide bandgap energy (Eg = 3.3 eV) [10]. ZnO can only be activated by light with a wavelength lower than ca. 380 nm to trigger the electron-hole separation. Second, ZnO exhibits a low quantum efficiency due to the fast recombination of photo generated charge carriers (electrons and holes).

In recent reports, our group demonstrated the high photocatalytic activity either under simulated solar light or under visible light irradiation of doped- or QDs-sensitized metal oxides like ZnO or TiO2 [11-14]. The developed photocatalysts were demonstrated to have a high activity for the degradation of dyes like Orange II dye or drugs like salicylic acid. Another interesting application is in the field of health with Ifosfamide (IFOS) as an anti-tumor agent [15]. It is a persistent molecule that is difficult to degrade by traditional methods and whose degradation leads to the production of intermediate products.

Photocatalysis is an interesting alternative for the degradation of IFOS but has only scarcely be investigated. OH radicals are the dominant species for the oxidation of IFOS and de-chlorination is the first step in the degradation of the photocatalytic oxidation process [16].

In this paper, the photocatalytic degradation of IFOS using a CuInZnxS2+x QDs (ZCIS) sensitized ZnO photocatalyst immobilized in a microchannel was investigated under artificial solar irradiation. Our objective is to demonstrate the interest of microreactors for the kinetic study of photocatalytic reactions. The degradation of IFOS under solar irradiation (4 mW/cm2) was carried out using a thin layer of catalyst ZnO/ZCIS deposited in a microchannel. In these conditions, it was possible to initiate and follow the photocatalytic reaction. Degradation of IFOS can be fitted by the Langmuir-Hinshelwood model and external diffusion can be characterized by Sherwood (Sh) and Damköhler (Da) numbers.

Materials & Methods

Previously, several microchannel reactors have been tested [17-20] in order to determine the best design of microreactors. The one tested in this research is composed of a microchannel with a serpentine shape engraved in a stainless steel support. Figure 1 shows the shape of the microchannel covered by a rectangular glass.

https://www.siftdesk.org/articles/images/452/1.png

Figure 1. Design of the microreactor with a serpentine microchannel shape with a length of 516 mm.

The fluid flows into the rectangular section of the channel which is 1.5 mm wide, 0.7 mm deep and 516 mm long. The characteristics of the channel geometry and flow are shown in Table 1. At a flow rate of 5 mL/h, the space time is 390s experimentally measured by the crossing time of a bubble between the inlet and the outlet of the microreactor. We have also measured the residence time distribution (RTD) to characterize the reactor. Experiments were realized with the injection of Blue Methylene tracer and absorption of the solution at the outlet. A mean residence time equal to 393s was found which is very close to the observed experimental space time. There was no stagnating zone between catalyst and flow region. Since the Reynolds number is about 1, the flow condition inside the microeactor channel is a laminar flow.

2.1. Photocatalytic composite

Metal oxides such as ZnO have a wide band gap (3,24 eV) which limits its absorption to the UV region. In order to improve the photocatalytic activity, we combined the ZnO semiconductor with ZCIS to form the ZnO/ZCIS composite photocatalyst. Among the good properties of this composite, there is a separation of the charges (e, h+) in order to prevent their recombination [9]. ZnO/ZCIS is an ideal candidate because of its low band gap (2.1 eV) and its low toxicity.

The ZnO/ZCIS photocatalyst was deposited at the bottom of the micro-channel reactor. The amount of deposit was determined by weighing the dried reactor before and after the deposition. Several experiments were performed to determine the minimal mass without limitation of the production of reactive sites. An optimal mass of 40 mg was found. No differences of the conversion were observed with a variation of the concentration above this value.

2.2. Photocatalysis experiments

IFOS solution with an initial concentration varying from 2.5 to 10 mg/L was injected by means of a syringe pump through the microreactor with a constant inlet flow rate of 5 mL/h. Even without irradiation, IFOS is adsorbed on photocatalyst when the flow is crossing the channel, which may result in a decrease of the solution concentration. To take into account this effect, we carried out the photodegradation reaction after waiting for 2 h in the dark in order to reach the adsorption equilibrium.

An artificial solar irradiation with Neon, JBL Solar Color T8 15W, was used. The intensity light was measured with a radiometer below the glass cover and just above the photocatalyst. A value of 4.0 mW cmwas found.

During the step of irradiation, a sample was withdrawn after regular time intervals at the outlet of the microreactor. The solution of the sample was centrifuged at 15, 000 rpm for 2 min and then injected into an HPLC in order to determine the output concentration of IFOS and then the conversion yield. The signal at 485 nm was used to evaluate the conversion of IFOS.

Table 1: Geometric and flow characteristics of the channel at 5 mL/h.



Width

w (mm)

depth

h (mm)

Length

L (mm)

Volume

V (mm3)

Space time

tp (s)

Average- Residenc e time u (mm/s)

τ (s)

Mean velocity

Re



1.5

0.7

516

542

390

393

1.32

1.26

Results

3.1. Adsorption and degradation of Ifosfamide

Under dark conditions, the equilibrium of the adsorption of IFOS was achieved after 90 minutes. The concentration profile obtained from the kinetic experiments using the microreactor with ZnO/ZCIS and initial concentration of 10 mg/L is represented on Figure 2. After the beginning of irradiation (t = 90min), there is a fast degradation which occurs in less than 30 minutes. Nevertheless, there is a simultaneous degradation of secondary products for a longer time of 50 minutes.

https://www.siftdesk.org/articles/images/452/2.png

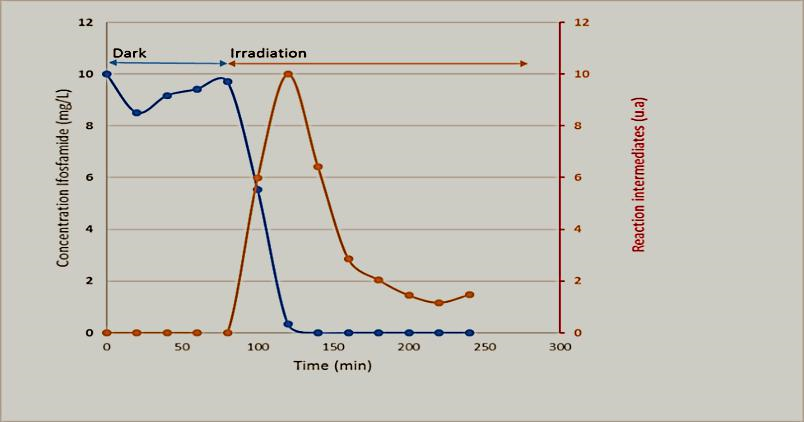

Figure 2. Degradation of Ifosfamide and the secondary products in microreactor under solar light ; Irradiation after 90 minutes in the dark (initial time in the dark).

3.2. Influence of the residence time on the conversion yield

In this case, the experiments were realized at the same flow rate of 5mL/h and C0=10mg/L; the residence time τ is adjusted by changing the reactive volume of the microchannel. This was achieved by connecting several microreactors in series. The final phase was a development of an integrated system with several microreactors. This makes it possible to determine the improvement due to a longer reaction time. The Figure 3 illustrates the variation of the conversion yield as a function of irradiation time in the case of two reactors in series. After reaching the adsorption–desorption equilibrium in the dark during 90 min (Figure 1), C/C0 equals 1 and the irradiation time is started (t=0). A gradual decrease of the concentration of Ifosfamide is observed as a function of the irradiation time (Figure 3).  The efficiencies of Ifosfamide degradation by ZCis is determined quantitatively using the pseudo-first-order model C/C0 =exp(−kap t), where kap is the apparent rate constant (min−1) and C0 and C are the concentrations of Ifosfamide at time 0 and t, respectively. The rate constants kap determined for the degradation of the IFOS solution are found by R-squared values on the trend lines; the values are 0.045 (R2=0.9993) and 0.065 min−1 (R2=0.9743) for one reactor and two reactors in series, respectively.

https://www.siftdesk.org/articles/images/452/3.png

Figure 3. Photocatalytic degradation of Ifosfamide under solar irradiation (light intensity I=4 mW/cm2) ; flow rate Q=5mL/h ; C0=10mg/L; Influence of the space time when connecting several microreactors in series.

3.3. Influence of the initial concentration of Ifosfamide

On the other hand, the effect of the initial IFOS concentration C0 on the photocatalytic degradation by varying the concentration between 2.5 to 10 mg/L. The experiments have been performed with one reactor (516 mm). As can be seen in Figure 4, the initial slope of the curve is almost the same but a significant change occurs on the final conversion yield. It increases when the initial concentration of the pollutant decreases.

https://www.siftdesk.org/articles/images/452/4.png

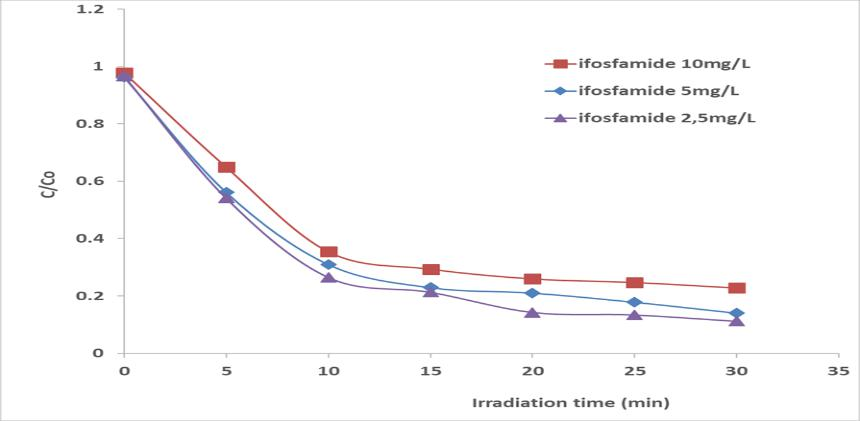

Figure 4. Influence of the initial concentration of Ifosfamide on the degradation; Flow rate = 5 mL/h ; I= 4 mW/cm2.

There is a decrease in the value of the rate constant until the equalization of the adsorption–desorption and kinetic rates. After 30 min of irradiation, the percentage of IFOS concentration levelled off due to the weak amount of concentration remaining in solution and equilibrium rates.

3.4. Modeling with COMSOL Multiphysics

In order to predict the time required for the degradation of IFOS and thus the reactor length needed, the IFOS concentration to the reactive surface Cs was calculated by the Computational fluid dynamics method. The schematic profile in the channel domain is shown in Figure 5.

https://www.siftdesk.org/articles/images/452/5.png

Figure 5. Schematic profile in the channel domain and liquid flow direction.

The model takes into account the convection-diffusion coupling occurring with the flow and the deposited photocatalyst. We introduced an equation reaction rate r at the photocatalytic surface and a mean value of the outlet concentration was used to estimate the fraction of IFOS remaining (C/C0).

Photocatalytic degradation rate of IFOS can be fitted by the Langmuir-Hinshelwood model with the assumption that the photocatalytic degradation occurs between the substrate and the adsorbed reactive species on the photocatalytic surface.

r = k K C/(1+K C). . . . . . . . . . . . . . . . . . .       (1)

Where k the intrinsic reaction rate constant and K the adsorption constant. By adjustment of the model with experimental values, we determined these two parameters: k=2.98 10-4 mol m-3 s-1 and K=4000 m3 mol-1.

A Newtonian incompressible flow was adopted to simulate the aqueous solution with a laminar flow distribution in the microchannel. The surface concentration Cs is calculated by the material balance for the surface, including diffusion and a reaction rate.

https://www.siftdesk.org/articles/images/452/e2.png. . . . . . . . . . . . . . . . . . .       (2)

where Cs is the surface concentration of IFOS in mol m-2 and r the surface reaction rate. In the model, the surface reaction rate r is considered as a negative boundary flux.

The transport in the bulk of the channel is described by a convection-diffusion equation:

https://www.siftdesk.org/articles/images/452/e3.png. . . . . . . . . . . . . . . . . . .       (3)

In the above equation, D denotes the isotropic diffusion coefficient of IFOS in aqueous solution, and u the flow velocity. In this case, the velocity u(x) in the perpendicular direction (width of the microchannel) equals 0 while the velocity in the parallel direction u(y) of the active surface (length of the microchannel) has a Gaussian distribution due to laminar flow distribution. The value of Reynolds number Re equals 1.3 which corresponds to a laminar flow.

At time t =1 minute, Figure 6 illustrates the convective flow (component y) near the output of the microreactor, and Figure 7 shows the distribution of the diffusive flux inside the microchannel at the same time. There is clearly a concentration gradient between the reaction medium and the catalytic surface corresponding to a limiting thickness of the diffusion layer about 0.2 mm.

https://www.siftdesk.org/articles/images/452/6.png

Figure 6. Convective flux inside the microchannel with laminar flow (Re=1.3); flow rate Q=5mL/h.

https://www.siftdesk.org/articles/images/452/7.png

Figure 7. Diffusive flux inside the microchannel and concentration gradient on the right side; flow rate Q=5mL/h.

3.4.1 Kinetic modeling and comparison with experimental results

As can be seen on Figure 8, there is a good agreement between experience and model. In our conditions of 5 mL/h, 70 % of conversion was reached in 20 minutes (C/C0=0.3).

https://www.siftdesk.org/articles/images/452/8.png

Figure 8. Comparison of experimental result and modeling based on Langmuir-Hinshelwood kinetic parameters Influence of the diffusion coefficient IFOS towards the photocatalyst; flow rate Q=5mL/h.

A small variation of the conversion rate was observed by varying the diffusion coefficient between 5. 10-10 and 10-9 m2 s-1. The adjustment of the model with the experimental results allows to evaluate the diffusion coefficient of IFOS towards the photocatalyst at about 1. 10-9 m2 s-1. This value corresponds to that found in the literature for persistent pollutants like Chlorophenols. For example, Martins et al. [21] find a value of 1. 10- 9 m2 s-1 for the self-diffusion coefficient of 2-chlorophenol in water at 298K in a bulk reactor. Figure 9 shows the diffusion flux which has decreased slightly with the reaction time and that corresponds to the change of concentration gradient over time. The diffusion flux to the catalytic wall compensates for the consumption of the reactants during the passage time in the reactor. In the case of total length of 2m and in our experimental conditions, a diffusion time is evaluated to about 250s.

https://www.siftdesk.org/articles/images/452/9.png

Figure 9. Diffusive flux along the photocatalytic surface and influence of the reaction time during the flow in the reactor.

3.4.2 Mass transport toward catalytic surface

The Sherwood number is a function of the hydraulic channel diameter dh, the diffusion coefficient D and the mass transfer coefficient kd. The hydraulic diameter and the diffusion coefficient are constant whereas the mass transfer coefficient is a function of the concentration of IFOS. As fluid flows along the channel in y-direction, the concentration gradient in x-direction due to the photocatalytic reactions leads to a mass transfer characterized by the mass transfer coefficient kd = Sh*dh/D.

In the Figure 10, Sherwood number is plotted versus coordinate y at a given time (t=20 min). Based on the results of Figure 10, one can estimate the value of Sh number around 1.45 which is in agreement with previous study [20] but slightly lower than the value of 6 found previously.

https://www.siftdesk.org/articles/images/452/10.png

Figure 10. Sherwood number along the catalytic surface with a length of 200 cm.

From the value of Sherwood number, we deduce a mass transfer kd=7.6 10-6 m s-1.

To evaluate the limitation by mass transfer we used the number of Damköhler Da which represents the ratio between the rate of reaction and the rate of transfer [17].

Da=k/(kd*a/K). . . . . . . . . . . . . . . . . .       (4)

In which a is the specific area = Catalytic surface / Volume of microchannel. The value of Da around 100 shows that the rate of reaction under our experimental conditions is greater than the transfer of matter and therefore the rate of transfer limits the photocatalytic reaction.

Conclusion

A complete degradation of Ifosfamide and the by-products have been achieved with the analysis of mass transfer and reaction in microchannel reactor. The adjustment of the model with the experimental results allows to evaluate the kinetics constants of the Langmuir-Hinshelwood model (k, K) and diffusion coefficient of Ifosfamide (D). The model makes it possible to predict a conversion percentage of 70% in 20 minutes in a microreactor with a total length of 1.6 m. The Sherwood number and the average value of Damköhler number show that the photocatalytic reaction under our experimental conditions is limited by the mass transfer. There is clearly a concentration gradient between the reaction medium and the catalytic surface corresponding to a limiting thickness of the diffusion layer. CFD modeling allows a perfect control of the process parameters and the use of microreactors is promising for the degradation of pharmaceuticals in water.

Acknowledgement

We would like to thank the National Agency for Research (ANR CD2I 2013, PRUMOS project).

The authors have declared no conflict of interest.




Symbols used

a

[m-1]

specific area

C

[mol L-1]

IFOS concentration

C0

[mol L-1]

initial IFOS concentration

Cs

[mol m-2]

IFOS surface concentration

D

[m2 s–1]

diffusion coefficient

Da

[--]

Damköhler number

dh

[m]

channel hydraulic diameter

h

[m]

channel depth

K

[m3 mol-1]

adsorption constant

k

[mol m-3 s-1]

intrinsic reaction rate constant

k0

[min-1]

initial pseudo first order reaction rate constant

kap

[min-1]

pseudo first order reaction rate constant

kd

[m s-1]

mass transfer coefficient

L

[m]

channel length

Q

[m3 s-1]

volumetric flow rate

Re

[–]

Reynolds number

t

[s]

time duration

t0

[s]

initial time: starting irradiation

tp

[s]

space time V/Q

u

[m s–1]

mean mass velocity

V

[m3]

channel volume

w

[m]

channel width

Greek letters



τ

[s]

average residence time

Subscripts



0



initial (starting irradiation)

Abbreviations



CFD



computational fluid dynamics

IFOS



Ifosfamide

OH



radicals

QDs



quantum dots

TiO2



Titanium dioxide

ZCIS



CuInZnxS2+x (quantum dots)

ZnO



Zinc Oxide

ZnO/ZCIS



composite

ZnS



Zinc sulfide
