Improvement of extraction methods of Malian Cashew nut shell liquid

Jeremy Valette ^b, Alfredo Napoli ^b, Noel Durand ^c, Didier Montet ^c

a. Institut Polytechnique Rural de Formation et Recherche Appliquée (IPR/IFRA) de Katibougou, 22 Route de Koulouba, Dar-salam, Bamako, Mali

b. CIRAD, UR Biowoeb, 73 rue Jean-François Breton, 34398 Montpellier Cedex 5, France

c. Qualisud, Univ Montpellier, Avignon Université, CIRAD, Institut Agro, IRD, Université de La Réunion, Montpellier, France

Huang Y(youyi@mail.hzau.edu.cn)

Jeremy Valette, Alfredo Napoli, Noel Durand, Didier Montet, Improvement of extraction methods of Malian Cashew nut shell liquid (2022) Journal of Earth Sciences & Environmental Studies 6(1) : 121-130

The extraction of cashew nut shell liquid (CNSL) was investigated using five solvents (water, water-methanol mixture, acetone, methanol and hexane) under different extraction conditions. Effects of process parameters such as extraction cycle, pressure, solvent volume and extraction duration were investigated.

The best yields of extraction (51.7%) were obtained with water-methanol mixture by using an accelerated solvent extractor (ASE) under pressure at 100 bars. The extraction obtained with water at atmospheric pressure was close to ASE extraction (49.8%). However, the composition of CNSL varied among these different operating conditions. Chemical composition of the extracted oil by ASE or by atmospheric pressure extraction showed minor difference in their composition. The quality of the analyzed extracts was almost equal in cardol, cardanol, anacardol and anacardic acid contents.

Key words: cashew nut shell liquid extraction, solvent effect, High Performance Liquid Chromatography-UV, GC-MS Chromatography

Cashew (Anacardium  occidentale  L.) is  an indigenous  tree  of Brazil  and  grows  well in some tropical countries in Asia and Africa  (Assuncão and Mercadante, 2003;  Michodjehoun-Mestres et al., 2009;  Shobha et al., 1992).

Cashew nut comprises the shell and the kernel. While the kernel is nutritionally valuable, the shell which represents around 50 % wt. of the cashew kernel (Rodrigues et al., 2006) has been considered as residue of cashew nut production, which may be an environmental problem if it is not handled properly.

Cashew nut shell is the by-product of the cashew industry. Cashew nut shell contains a dark reddish brown viscous liquid called cashew nut shell liquid (CNSL). CNSL consists of unsaturated phenolic compounds as anacardic acid (90%) and cardol (10%) with minor amounts of 2-methyl cardol and cardanol (Patel et al., 2006). CNSL is extracted from Cashew nut shell by different methods like roasting, hot oil process, screw pressing, solvent extraction and super critical carbon dioxide extraction. CNSL obtained by cold extraction is considered as natural CNSL and when it is extracted by hot extraction, it is denominated as technical CNSL.

CNSL extracts contains anacardic acid (60-65%), cardol (15-20%), cardanol (10%) and traces of methyl-cardol. Technical CNSL contains mainly cardanol (60-65%), cardol (15-20%) and traces of methyl-cardol (Mazzetto et al., 2009).

CNSL is a versatile raw material and has many industrial applications with 200 patents. The most important use of CNSL is for the manufacture of friction modifying material for brake lining, clutch facing and industrial belting (Mwangi and Thiong’o, 2013).

Extraction of CNSL is carried out by various methods that are discussed in detail in the literature. The variability of composition depends on extraction method but in general, the composition of natural CNSL is a mixture of anacardic acid, cardanol, cardol and 2-methyl-cardol in smaller quantities (Rajesh et al., 2011).

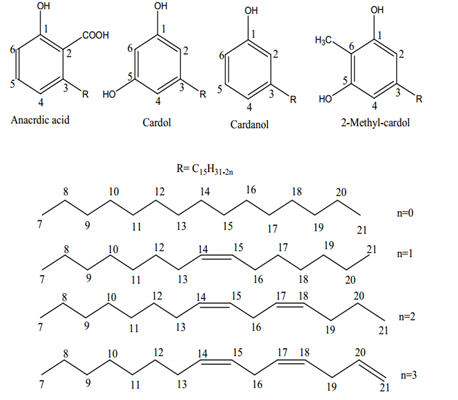

Fig. 1. Structure of main components of CNSL (Phani et al., 2002)

Various methods have been reported in literature for the extraction of CNSL from CNS, which included, open pan roasting, drum roasting, hot oil roasting, cold extrusion, solvent extraction, etc. CNSL solvent extraction methods are various, but all require fairly large technical facilities and use chemicals which are sometimes toxic and expensive and under specific extraction conditions.

The extraction through vacuum pyrolysis has been reported by Das et al. (2004) and Tsamba (2004). The extraction of CNSL using supercritical carbon dioxide (SC-CO2) has also been reported by Shobha and Ravindranath (1991) and Smith et al. (2003).

The objective of this study was to simplify the extraction of CNSL using an inexpensive solvent (preferably water) to get an efficient and inexpensive method of extraction that will be easy to set up while guaranteeing a CNSL quality and extraction yield comparable to already known solvents.

2.1. Materials

Cashew nut shell was purchased from "Agribusiness Mali" located in Bamako, Mali and conditioned in a room at 20°C and at a relative humidity of 66% for more than 72 h in order to have a homogeneous biomass. Extraction was performed without prior grinding.

2.2. CNSL extraction with Accelerated Solvent Extractor (ASE)

Five grams of raw cashew shell were placed in the ASE extraction cell. Cell were purchased from Thermo Scientific Dionex ASE; the model 150 Stainless Steel Extraction Cell was used to perform CNS extraction. The Cell volume is 10 mL and it is fitted with end caps, seals, and O-rings.

ASE was programmed with a number of extraction cycles per cell and the temperature was set according to the solvent used.

The five extraction solvents used were distilled water, hexane, methanol, acetone and a 50/50 (w/w) water-methanol mixture. Three extraction cycles permitted to extract the maximum amount of CNSL. Each extraction cycle lasted 20 min. The extraction temperatures on ASE have been regulated according to the nature of the solvents, at certain temperatures some solvents become volatiles. The setting temperatures were as follows: 60°C for acetone, 120°C for hexane, 80°C for methanol, 100°C for water and 80°C for the 50/50 water-methanol mixture (w/w) and all extractions series were carried out under pressure at 100 bar. The volume of solvent injected per cell varied according to the filling of the cell; on average 6 mL of solvent were injected per cell. A tube was weighed and placed on each cell in order to collect the CNSL. An extraction program with 3 cycles of 20 min per cell was used and the extracts were placed under a hood to evaporate the residual solvents for 12 h then dried in an oven at 70°C for 24 h, then weighed in order to calculate extraction yields.

After CNSL extraction under pressure water (ASE), the same protocol (described above) was applied with water without pressure in order to compare the effect of pressure on the efficiency and yield of the extraction. At the end of the extractions, the tube containing the CNSL was collected then the solvent was evaporated (under a hood) then dried in an oven at 70°C for 24 h to remove the humidity and the residual solvent and then it was weighed to calculate the extraction yield.

Extraction yield (%) =((Mass cnsl/Mass cns) x h) x 100

Where h is humidity. Each extraction was performed in triplicate.

2.3. CNSL extraction under atmospheric pressure

Five g of raw cashew shell were placed in a 500 mL glass flask filled with 100 mL distilled water and the whole was heated at 100°C for 2 h. These extractions were carried out during 4 h in order to study the effect of contact time on the extraction yield.

Subsequently the same extraction method was applied but by increasing the volume of the solvent (water) to 200 mL under the same conditions for 2 h in order to study the efficiency of the extraction according to solvent volume.

At the end of the extractions, CNSL was recovered in tubes after solvent evaporation in the hood and the extracts were dried in an oven at 70°C for 24 h to remove the moisture and the residual solvent and they were weighed to calculate the extraction yield.

2.4. CNSL extracts analysis

Phenol (D6) standards were purchased from Sigma-Aldrich (Germany); Anacardic acid and Anacardol standards were purchased from Santa Cruz Biotechnology (USA), and cardanol was purchased from Carbosynth (UK).

CNSL samples resulting from the various extractions were analyzed by GC-MS and HPLC-UV in order to characterize them and to evaluate the effects of the extraction conditions on their composition. The standard solutions were prepared according to Table 1.

Table 1 Preparation of standard solutions

Internal standard (phenol D6) 100 µL was added to each 1 mL calibration solution. Samples were prepared with 50 mg of extracts (CNSL) dissolved in 10 mL of acetone then 1 mL was taken and 100 μL internal standard was added.

2.4.1. GC-MS analyses

The GC-MS analysis was carried out with an Agilent 6890N gas chromatograph coupled to an Agilent 5975 mass spectrometer with a column DB1701 Agilent 60 m x 250 µm x 0.25 µm. The carrier gas was helium with a flow rate of 1.9 mL/min. The gradient was as follows: 100°C for 4 min then 5°C/min up to 270°C and a step of 30 min. The acquisition SCAN mode was chosen with M/Z range [27-350]. The chromatograms of each standard are overlaid (Fig. 4). The 4 peaks of cardanol: (M / Z = 302) at 41.1 min, (M / Z = 304) at 41.3 min (= anacardol), (M / Z = 300) at 41.5 min and (M / Z = 298) at 41.6 min. Anacardic acid appears the same peak as anacardol, probably due to its degradation in the injector (250°C).

Fig. 2. Overlay of GC-MS chromatograms of standard solutions

The 4 cardanol peaks are integrated together. The area is divided by the area of the internal standard and the calibration line is drawn (Fig 3).

Fig. 3. Cardanol calibration line, integration of the 4 peaks in TIC (Ae / Aei = f _{(concentration g /L)})

2.4.2. HPLC-UV analyses

HPLC-UV analysis were performed with Dionex HPLC-System with autosampler 465. 2x Pump 420 and Degaser ERC 3512. HPLC-System was equipped with a diode-array detector and a refractometer.

The injection conditions were as follows: a 25 cm x 4 mm C18 HPLC column (5 μm particle size and a surface coverage of 3 μmol/m²) with an isocratic ACN/H₂O + 1% CH₃COOH 90/10 at a flow rate of 1.8 mL/min with a wavelength of 280 nm.

The same standards were injected. Peaks for cardanol, anacardic acid and anacardol were identified (Fig. 4). When injecting a sample, other peaks appeared and could be those of cardol. The calibration lines for cardanol, anacardic acid and anacardol were drawn (Fig. 5).

Fig. 4. Chromatogram of a sample and identification of compounds by HPLC-UV.

The samples were integrated (Fig. 4) and the concentrations were calculated (Fig. 5). The cardol concentration was calculated using the cardanol calibration curve.

The correlation coefficients calculated for all the compounds (cardanol, anacardol and anacardic acid) were quite high with an average R² = 0.982.

Fig. 5. Calibration curves in HPLC for (a) cardanol, (b) anacardic acid and (c) anacardol (A_e/A_ei=f_{(concentration g/L)}

3.1. CNSL extraction with Accelerated Solvent Extractor (ASE)

When extracting CNSL by ASE, different extraction yields were obtained that varied depending on the solvent used and the number of extraction cycles applied (Fig. 6).

Fig. 6. CNSL extraction by ASE according to solvents and cycles

After the first extraction cycle, the CNSL extraction yields were as follows: 50.14% for the 50/50 (v/v) water/methanol, 47.20% for water, 46.36% for methanol, 39.86% for hexane and 39.10% for acetone. The best CNSL extraction yield, 50.14%, was obtained with the 50/50 (w/w) water/methanol mixture; followed by water and methanol which have an average yield of 46% and the extraction yields for hexane and acetone were similar at 39%.

The difference between the highest extraction yield (50.14%) and the lowest (39.10%) was 11.04%.

By applying a second extraction cycle on the same sample, we obtained an additional extraction yield of 14.49% for water/methanol 50/50 (w/w), 10.85% for water and 9.05% for methanol. Hexane and acetone gave a light increase <1% of extraction yield in the second cycle which showed ineffectiveness of hexane and acetone on a sample that has already undergone a first extraction.

This was due to the extraction of lipophilic compounds that were extracted during the first cycle. Finally, the application of the third and last extraction cycle on the same sample gave the following additional extraction yields: 7.93% for 50/50 (w/w) water/methanol, 7.54% for water and 4.63% for methanol. The extraction yields for hexane and acetone logically remained below 1% meaning no more CNSL extraction.

However, despite the decrease in extraction yields over the 3 cycles, the 50/50 (w/w) water/methanol, water and methanol showed their extraction limit only after the third extraction cycle and that without reaching a zero-extraction residue. The greatest CNSL extraction yield was obtained during the first extraction cycle, which was explained by the high availability of CNSL due to large exchange surfaces between solvents and samples.

Extractions were performed in triplicate for each cycle in order to estimate extractions methods limits and errors and to evaluate the real differences between solvents. We calculated the error standard according to the equation below.

Erreur standard = (Mean extraction (3 repetitions))/((Standard deviation (3 repetitions)) ^2 )

(2 = square)

The extraction yields at cycle 1 error standard for acetone, hexane, water-methanol, methanol and water were respectively 1.86. 1.62. 1.31. 1.07 and 3.15. Except water. All the solvents showed a good extraction repeatability and extraction yield obtained present low standard errors.

The standard error for water extraction method under pressure (100 bars) was larger and we assume that it was related to the fairly high extraction temperature (100°C). At this temperature, there could be minor losses of water by evaporation, and this could explain these differences between the three repetitions that were experimentally as follow 47.20. 44.88 and 52.52%.

Carrying out the same calculation (error standard) for cycles 2 and 3 did not seem enough relevant for us, because after cycles 1 some solvents have already shown their extraction limits (acetone and hexane) and the other solvents having undergone and cycles 2 and 3 gave fairly low and heterogeneous extraction yields.

By comparing, the different extraction yields obtained by ASE and regardless of the extraction cycle. According to their CNSL extraction efficiency, the solvents used can be classified in increasing order of extraction yield efficiency which is as follows: water-methanol mixture (50/50 w/w), water, methanol, hexane and acetone (same yield).

3.2. CNSL extraction at atmospheric pressure

There was logically an increase in the extraction yield as a function of the contact time and the volume of solvent (water) used. According to the experimental conditions, CNSL extraction yields were as follows 36.49%, 43.56% and 49.81% with 100 mL / 2 h; 100 mL / 4h and 200 mL / 4h respectively (Fig.7).

Fig. 7. CNSL extraction at atmospheric pressure

The CNSL best extraction yield at atmospheric pressure was obtained with the method using 200 mL water for 4 h (contact time). By comparing the different extraction yields obtained at atmospheric pressure and ASE method, it can be seen that after 2 h of contact, the extraction yields were almost equal to those obtained by ASE. After comparison of all different extraction yields, we could classify (in terms of efficiency) the atmospheric pressure extraction method with 200 mL water /4 h in second position (49.81%) after that obtained in ASE at 50/50 (w/w) water/methanol mixture (51.69%). We also carried out a statistical analysis of CNSL extraction with water at atmospheric pressure (table 2).

Table 2. CNSL extraction at atmospheric pressure

*HE: High Error                                 *LE: Low Error

In order to compare the reliability of the water extraction methods at atmospheric pressure we calculated the higher and lower error values corresponding respectively to the highest and lowest extraction yields of the three replicates.

The calculation of the differences between the mean extraction yield (obtained from the three replicates) and the higher and lower errors showed a certain heterogeneity with 100 mL / 2h water extraction method.

Increasing the extraction time (from 2 to 4 h) reduced considerably errors and the extraction method became more dependable (Mean-LE = 0.41).

We also proceeded to the calculation of the error rate between the 200 mL / 4h method and 100 mL / 4h method and it was estimated with the following formula:

Error rate = (Mean-LE of method 200 mL / 4h)/(Mean-LE of method 200 mL / 2h)

Comparison of the error rate between the two methods (200 mL / 4h and 100 mL / 4h) gave an error rate of 2.07% which is relatively low and confirmed the overall data (200 mL / 4h method was the best extraction yield). It can be seen that by increasing the extraction time and water volume. CNSL extraction at atmospheric pressure was more efficient with fewer errors.

3.3. CNSL characterization by GC-MS

The samples analyses were made using an Agilent 6890 gas chromatograph equipped with an Agilent 5973 mass selective detector coupled to an FID.

The system was equipped with fused silica capillary DB-WAX polar column (J&W, 30 m x 0.25 mm i.d.; film thickness 0.25μm) and a DB-1 MS apolar column (J&W, 30 m x 0.25 mm i.d.; film thickness 0.25μm) (Palo Alto, USA). Mass spectra were obtained by EI at 70 eV within 40 to 300 Da. Carrier gas, hydrogen, was attuned at a regular run speed of 1.5mL/min. MS source and interface temperatures were 250°C and 280°C, respectively. Temperature was programmed at 3°C/min from 40°C to 170°C, then 10°C/min up to 240°C and held for 10 min. On Column Injection (1μL) was carried out at 250°C.

The measured area (Fig. 8), permitted to calculate the concentrations of each extract (Table 2).

Fig. 8. GC-MS Chromatograms of the different extracts

Table 3. Quantity of CNSL extracted by different solvents obtained by GC-MS

The results of GC-MS analysis showed that the concentration of pure CNSL in the samples varied greatly depending on the extraction solvent used. The CNSL highest amount per extract was obtained with hexane (66.8 %) and in contrast, methanol extraction showed CNSL lowest amount (30.4%).

The oil obtained at various operating parameters was analyzed for its chemical composition. Table 3 shows the principal components present in CNSL obtained at various operating parameters. It was noticed that the main component in CNSL was cardanol with side chain having 13–17 carbon atoms; however, its concentration was different at different operating parameters. This could be attributed to anacardic acid decarboxylation at higher temperature (Philip et al., 2008).

3.4. CNSL characterization by HPLC-UV

The samples were integrated in Fig. 8 and the concentrations were calculated (Table 3). Depending on their retention time, the compounds (cardanol, anacardic acid and cardol) were identified and their concentrations per extract were determined. The cardol concentration was calculated using the cardanol calibration curve.

Table 4. CNSL analysis obtained by HPLC-UV

The use of different extraction methods affected CNSL compounds concentration. As shown in Table 4, composition of extract depended strongly of extraction methods.

All extraction methods, except water-methanol and methanol, were capable to extract a high concentration of monounsaturated cardanol. However, the highest amount of monounsaturated cardanol was obtained with water as solvent under ASE extraction conditions (0.44 g/L), followed by those obtained with hexane and water extractions (0.35 and 0.36 g/ L respectively).

High content of cardanol in water ASE extract was likely the result of the high temperature used in the extraction hot water (100°C) at 100 bar pressure). Anacardic acid was easily degraded by decarboxylation process to form cardanol at high temperature (Philip et al., 2008). A slight difference of cardanol content was found between acetone extract and water-methanol extract.

These results also show that anacardic acid concentration was not affected by the extraction method used (average concentration of 0.07 g/L ± 0.5 for all extracts).

Results given in Table 4 show water-ASE extraction yielded the highest concentration of  compounds (27.0 %) followed by hexane extraction with its content of  23.8%, while  methanol  extraction resulted in low extract yield (12.2%). This result is in agreement with the previous work reported by Setianto et al. (2009).

This work showed that the extraction methods had a major influence on the yields of CNSL and as well as its composition. It is important to note that the extraction of CNSL can be done with water at atmospheric pressure with yields and composition of CNSL closed to yields obtained with organic solvents.

Compounds of interest like cardol and anacardic acid were highly concentrated in extracts from water-ASE and hexane extraction methods (0.85 g/L and 0.07 g/L respectively).

However, it is important to note that GC-MS and HPLC-UV analyzes did not give the same quantitative result on CNSL major compounds (cardanol, anacardol and anacardic acid). The adjustment of the values will be necessary by injecting a cardol standard. Another improvement would be to try to inject anacardic acid at a lower temperature in GC-MS, in order to avoid its degradation.

The proposed extraction method, based on aqueous extraction, allows very good yields to be obtained, higher than those usually obtained by solvent extraction, therefore more respectful of the environment but above all applicable in developing countries without the cost of exorbitant protection.
